| Type | Solenoid Valves | Application | Single Unit |
| Mounting Orientation | Direct | Voltage | DC24V |
| Specification | Standard / Lubrication Free | Valve Type | 5-Port Valve |
| Actuation | [Single] Single | Status at Power Off | Self-Retaining |
| Valve Positions | 2-Position Exhaust | Applicable Cylinder Diameter(Ø) | 63 or less |

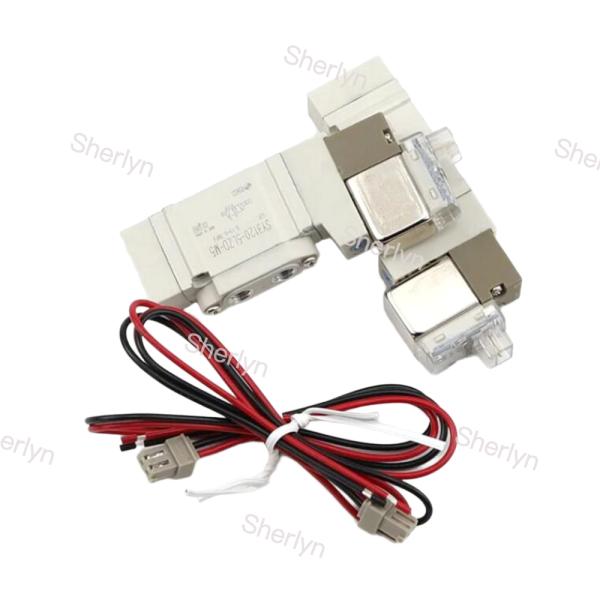

Product Description:
The core features of the SY3120 series solenoid valve are as follows:
Specific description of characteristic categories
- High-efficiency and energy-saving coil: The solenoid valve features a coil with low power consumption. Some models only have 0.1W (with energy-saving circuit), while others have 350mW. This helps to reduce the system's operating energy consumption.
- Compact design: The structure is compact, lightweight, and has a small and beautiful appearance. Some models weigh about 64.87 grams or 48 grams, saving installation space.
- Reliable and durable main body: Made of aluminum material with sealing material as HNBR rubber. Some models have a protection level of IP65, effectively preventing dust and water. The impact/vibration resistance performance is usually 150/30 m/s².
- Accurate control and fast response time: The solenoid valve offers a fast response time of 12 milliseconds or less. The maximum action frequency can reach 10Hz, making it suitable for fast repetitive actions.
- Easy to install and maintain: Various interfaces and connection methods are provided, such as direct piping and quick change fittings. There are also various wiring methods available, such as direct outgoing type (with 300mm wire), L-shaped socket type, etc. Some models come with manual operation functions (locked or unlocked), indicator lights, and surge voltage suppressors for easy debugging and maintenance.
Applications:
The SY3120 series solenoid valve is a commonly used component in various fields and equipment owing to its reliable performance.
It finds extensive application in general automation equipment across industries including medical equipment, clothing machinery, welding machines, drying systems, measuring instruments, food processing equipment, beverage manufacturing machinery, biopharmaceutical facilities, HVAC systems, electroplating units, coating machines, rubber and plastic processing machinery, and more.
In the automotive and component manufacturing sectors, this solenoid valve is utilized in welding lines and other crucial operational processes.
It is also well-suited for the electronics and semiconductor industry, specifically for CNC machine tools and associated equipment.
Moreover, within the packaging and logistics domain, these solenoid valves are commonly integrated into equipment like food packaging machinery and logistics sorting systems.
Support and Services:
SMC Solenoid Valves offer comprehensive product technical support and services to ensure optimal performance and reliability. Our team of experts is available to provide assistance with installation, troubleshooting, and maintenance of the solenoid valves. Additionally, we offer training programs to help customers understand the capabilities and operation of our products.
Packing and Shipping:
Product Packaging:
The SMC Solenoid Valves are carefully packaged in sturdy cardboard boxes to ensure safe transportation. Each valve is individually wrapped in protective packaging material to prevent any damage during shipping.
Shipping:
Orders of SMC Solenoid Valves are typically shipped within 1-2 business days after payment confirmation. We offer standard and expedited shipping options to cater to your needs. All shipments are tracked, and a tracking number will be provided to you once your order has been dispatched.
