Product Description:
Material and Structure:
The valve body is usually made of anodized aluminum, the pilot head and flange are made of plastic, and the seals are often nitrile rubber, which has good wear resistance and sealing performance. It can adapt to the working environment inside the printing press, and its light weight is conducive to the overall layout and operation of the equipment.
Working Principle:
When the internal coil is energized, it generates magnetic force, which in turn controls the opening and closing of the valve port to control the on-off of the fluid. It can be divided into normally open and normally closed types, which can accurately execute control signals to realize precise control of the relevant fluid systems of the printing press.
Technical Parameters:
- Working Pressure: It varies with different models. Some models have a working pressure of 1-10bar, and some models can reach a working pressure range of 0-40bar, which can meet the working needs of different pressure environments in the printing press.
- Flow Rate: For example, the flow rate of model 2636047.0200.024.00 is 1200l/min, which can ensure sufficient fluid throughput to support the normal operation of relevant components of the printing press.
- Response Time: The response speed is fast. The response time of some models can reach 35ms, which can quickly realize the opening and closing of the valve to meet the control requirements during the high-speed operation of the printing press.
- Working Temperature: The general working temperature range is -10℃ to 60℃. Solenoid valves with some special material seals can adapt to a wider temperature range. For example, those with EPDM seals can work at -40℃ to +140℃.
- Interface Size: Common interface sizes include G1/4, G1/2, etc., which can be easily connected to the pipeline system of the printing press.
Performance Characteristics:
- High Precision: The precision can reach 0.01mm, which can quickly and accurately respond to control signals to achieve precise control, meeting the high requirements of Heidelberg printing presses for printing precision.
- Good Reliability: With a compact structure, strong seismic performance, and long service life, it can maintain a stable working state during the long-term operation of the printing press, reducing maintenance frequency and downtime.
- Strong Adaptability: It is suitable for different media and can be used to control filtered lubricated or non-lubricated compressed air and other media, adapting to the complex working medium environment inside the printing press.
- High Protection Level: The protection level of the electromagnetic coil has passed certifications such as ATEX, FM, CSA, and XP, which can prevent external factors from affecting the solenoid valve to a certain extent and improve its durability in the printing press environment.
Technical Parameters:
| Brand | IMI Herion |
| Materials - Body | Stainless Steel |
| Operation | 5/2 |
| Operating pressure | 2,5 ~ 8 Bar |
| Port size | G1/4, 1/4 NPT Or NAMUR Interface |
| Orifice | 6 mm (1/4”) |
Applications:

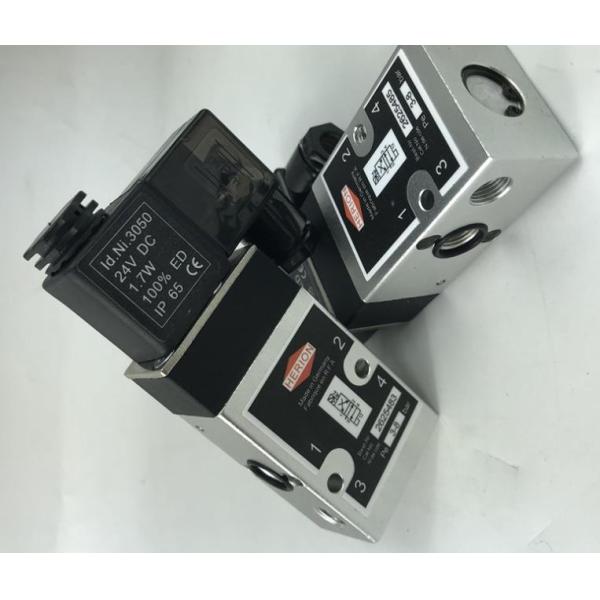

Heidelberg Ink reel solenoid valve 2622085
Brand / Model : Norgren / 2622085,2625484
Material : Aluminum Plastic
Type ( channel position ) : two formula
Connection: Thread
DN : 4 (mm) mm
Applicable medium : air
Flow direction : Bidirectional
Parts and accessories : Body
Usage: air volume control
Form: Plunger
Pressure Environment : High
Working temperature : room temperature ℃
Standard : DIN
Our company supplies Heidelberg series solenoid valve. Heidelberg model, Quality assurance, welcome to consult the discussion.
Packing and Shipping:
This Norgren Solenoid Valve is carefully packaged to ensure its safe delivery to you. The product is wrapped in protective materials and placed in a sturdy cardboard box to prevent any damage during transit.
For shipping, we partner with trusted carriers to securely transport your order to your desired location. Rest assured that your Norgren Solenoid Valve will be handled with care throughout the shipping process.
